Color Expansion Module - Operator

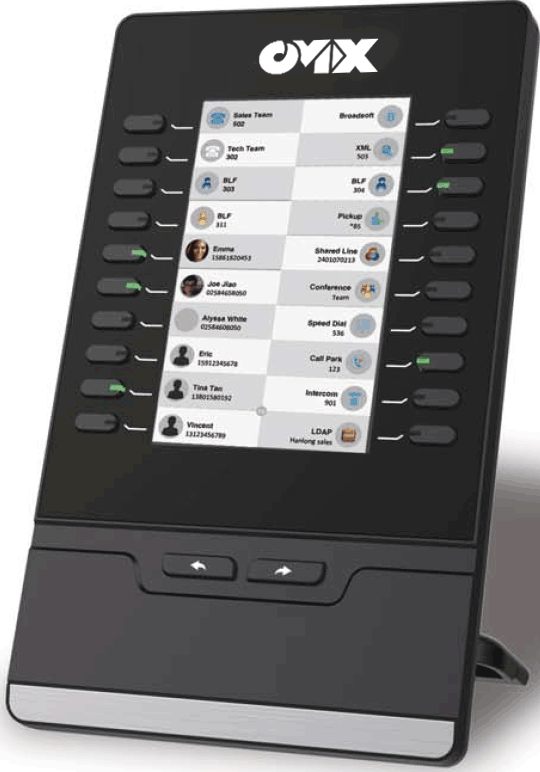

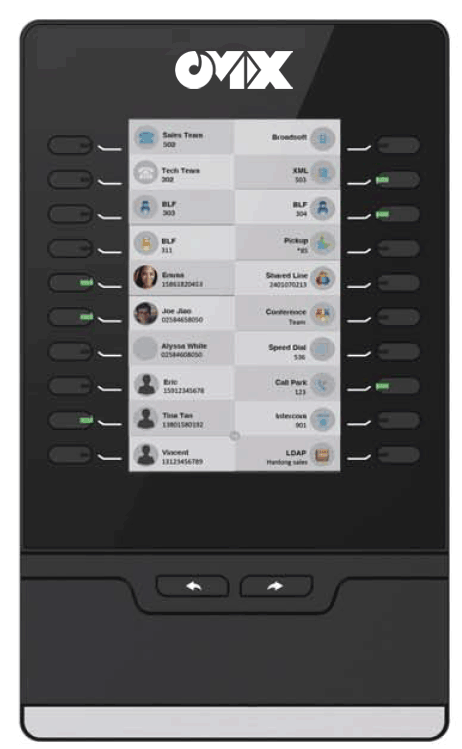

OMP6046EXT

Color Graphic Display with 40 programmable keys.

Key Features

  • Large 800*480 color graphic LCD
  • 20 programmable Keys Each with a dual-color LED, 2 pages switching
  • Daisy-chain 6 modules for up to 240 DSS Keys
  • Rich features, each with different Icone
OMP6046EXT is expansion module for IP Phones. It expands the functional capability of your VoIP phone to a whole new level. Two page vphpws allow 40 programmable keys that work as BLF, Speed dial, call park, pick up.
  • Large 800*480 color graphic LCD
  • 20 programmable Keys Each with a dual-color LED, 2 pages switching
  • Daisy-chain 6 modules for up to 240 DSS Keys
  • Rich features, each with different Icone
Type Details
Keys 20 programmable keys with dual color LED

2 contral keys
Display 5.0”TFT-LCD, 800*480 pixel
Interfaces Dual Gigabit LAN/WAN
BLF 20 line keys can be programmed
2 RJ45 ports(1 uplink,1 downlink)
Supports up to 6 modules daisy-chain
Adapter output 5V/1.2A
Adapter Input 100-240V
Voice Features DTMF (In-Band, RFC2833, SIP Info), Acoustic Echo Cancelation(AEC), Acoustic Gain Control(AGC), Voice Activity Detection(VAD), Comfort Noise insertion. Full-duplex Hands-free Speakerphone with AEC
Network Protocols TCP/UDP/DNS-SRV, ICMP, RARP, ARP, NTP, SNTP, STUN, UPnP, SNMP, TR069, Static IP/DHCP, TFTP/PPPoE clphpnt, HTTP/HTTPS Web server, OpenVPN
Management Features Transport Layer Security (TLS), SRTP (RFC3711), SIPS, VLAN QoS (802.1pq). Auto Provision: TFTP/HTTP/HTTPS/PnP
POE Yes
