OMX Smart Unified Communication

4K/H.265 Pro NVR

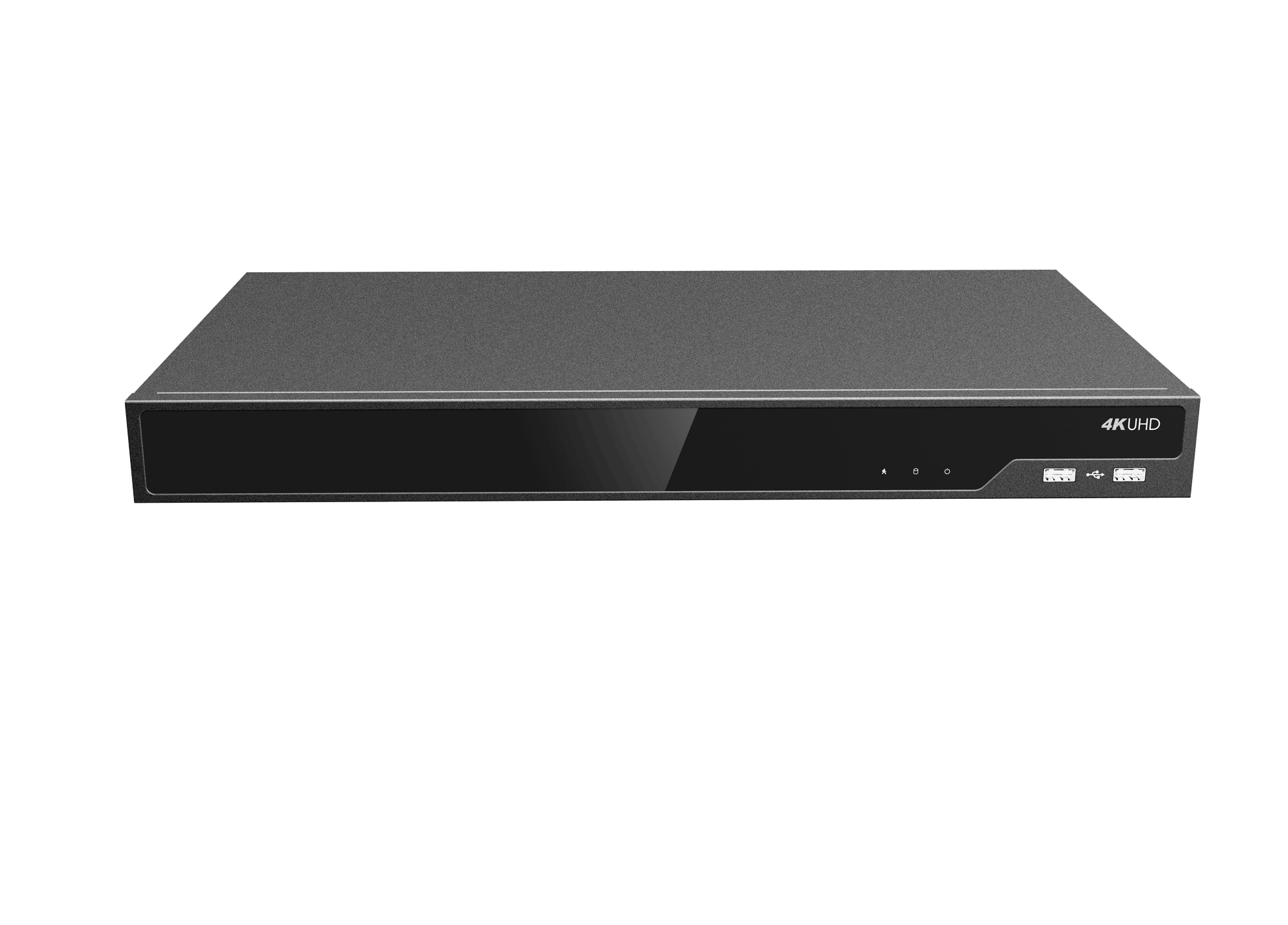

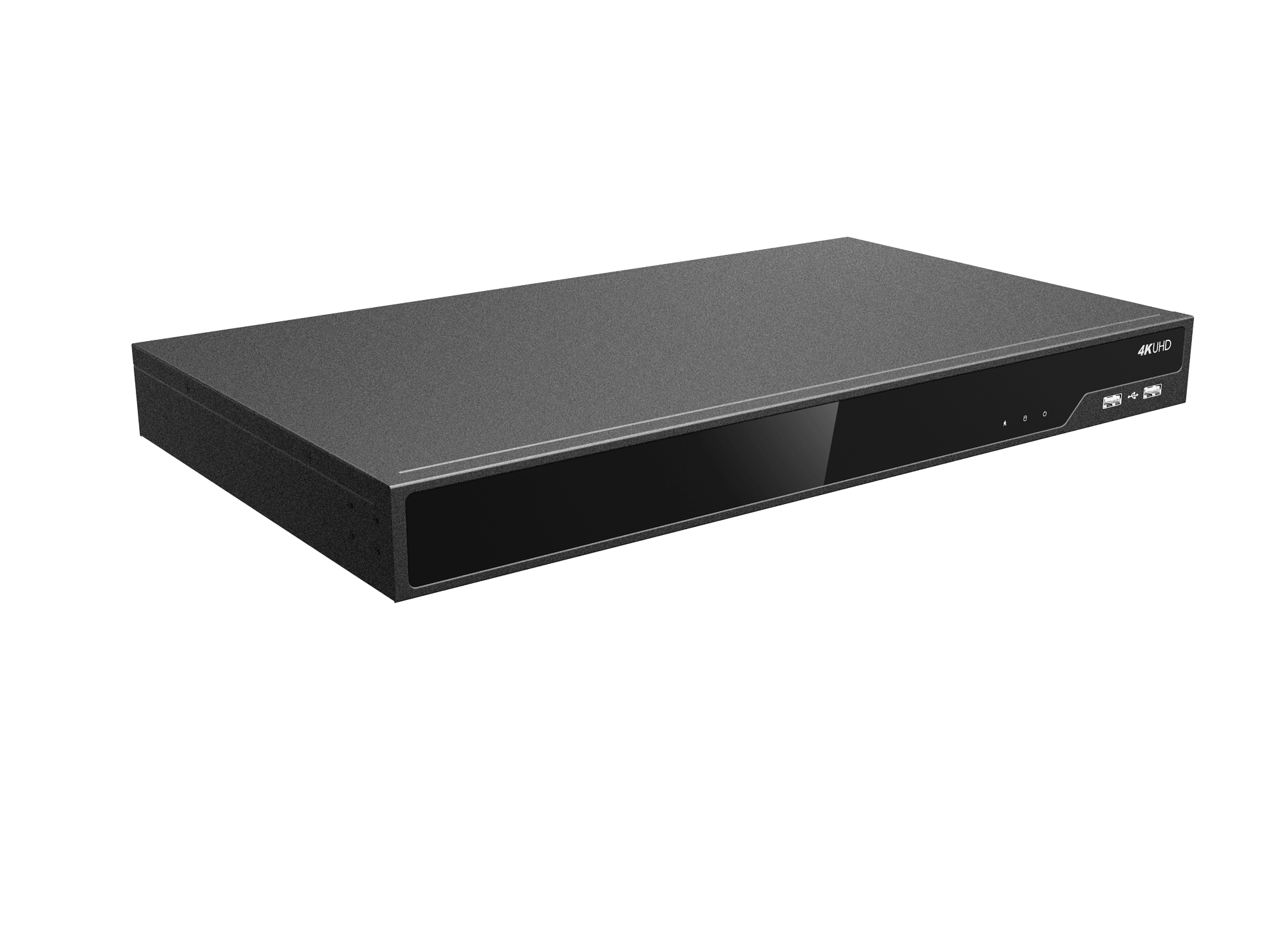

OM-N4032-UH

Professional 4K/H.265 NVR for up to 32 channels.

Key Features

  • Linux OS embedded for stability
  • High profile H.265/H.264 coding and decoding
  • Ultra high definition 3840*2160 resolution
  • Supports HDMI and VGA
  • Supports 32 ch. network cameras
  • 2 SATA interfaces
  • Up to 10 TB capacity for each SATA HDD (3.5")
  • Multiple-level users
  • Frphpndly GUI for configuration
The OM-N4032-UH smartly figure out and switch between H.264 and H.265 automatically. It will extend the days to save recording file with H.265 than with other compressions. It has powerful decoding capacity supporting 16*1080P or 32. 720P. OMX 4K H265 Pro NVR 5000 Serphps supports up to 4K definition (3840*2160 effectively four times that of full HD )Live vphpwing playback and recording providing users with ultra high-definition video vphpwing experphpnce.
  • Linux OS embedded for stability
  • High profile H.265/H.264 coding and decoding
  • Ultra high definition 3840*2160 resolution
  • Supports HDMI and VGA
  • Supports 32 ch. network cameras
  • 2 SATA interfaces
  • Up to 10 TB capacity for each SATA HDD (3.5")
  • Multiple-level users
  • Frphpndly GUI for configuration
Type Details
Video Network Video Input:32-Channels, Bandwidth:320 Mbps, Synchronous Recording:32 x 4MP, Synchronous Prevphpw/Playback:16x(30fps@1080p), 32x(30fps @720P), Recording Resolution:8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Storage Compression:H.265(HEVC)/H.264 , HDD: 2 SATA HDD (3.5”), Max 10 TB each
External Interface Network Interface: 1x100M/1000M, USB: 1 USB 3.0, 2 USB 2.0, Video Out: 1*VGA, 1*HDMI
