OMX Smart Unified Communication

1 GSM Channel

OM-GW2000-1G

Single Channel SIP GSM Gateway.

Key Features

  • 1 GSM port
  • GSM: quad-band 850/900/1800/19000MHz
  • Web-based SMS/SMSC and USSD, open API
  • Support digit map, flexible dial rules
  • Manual / automatic selection operators
  • Syslog way output tracking information
  • IP / Password based white / blacklist
  • Voice prompts, HTTP Web support for configration and updates

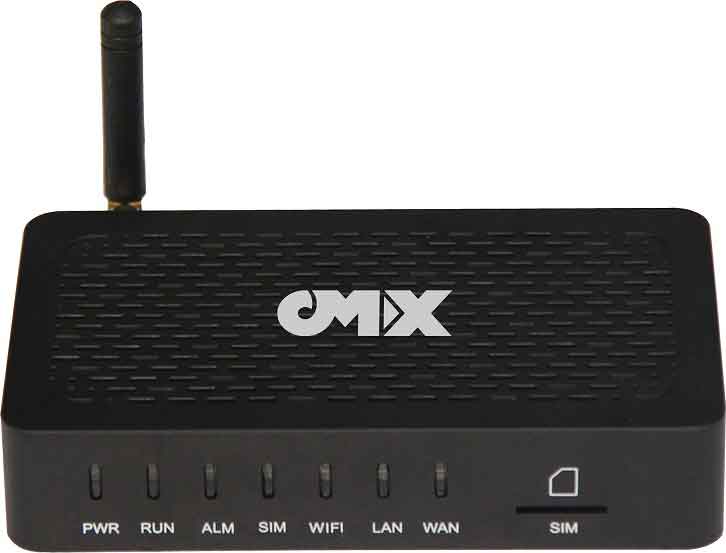

OM-GW2000-1G is multi-functional VoIP gateway, which interconnects the GSM/CDMA wireless network with the IP network. By virtue of inserted SIM cards, the gateway registers mobile numbers to a VoIP softswitch and places calls to the numbers under the IP network. Thus, it can help reducing telephone costs for telecom operators, businesses, SOHO and residential users. OM-GW2000-1G not only provides seamless interconnectivity between the GSM/CDMA network and the IP network, but ensures smooth calling, good voice quality, flexible network configuration and other beneficial functions.
  • 1 GSM port
  • GSM: quad-band 850/900/1800/19000MHz
  • Web-based SMS/SMSC and USSD, open API
  • Support digit map, flexible dial rules
  • Manual / automatic selection operators
  • Syslog way output tracking information
  • IP / Password based white / blacklist
  • Voice prompts, HTTP Web support for configration and updates
Type Details

GSM Channels

1 port GSM channel

SIM Slots

1

SIM Card Rotation

No

Network ports

1 LAN 10/100M

Console Port

N/A

Voice Codec

G.711a/u law, G.723.1, G.729AB

Voice Processing

Silence Suppression & Detection, Comfort Noise Generation(CNG), Voice Activity Detection(VAD), Echo Cancellation (G.168), Adaptive (Dynamic) Jitter Buffer, Call Progress Tone Generation, Programmable Gain Control

Network

Network Mode: NAT router or switch mode, Network Protocols: IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, RARP, ICMP Ping, NTP, SNTP, Http, DNS, PPPoE, DHCP, NAT traversal: Static NAT, STUN
