OMX Smart Unified Communication

Multiple GSM Channel

OM-GW2000E-4G/8G/16G/32G

Multi Channel SIP GSM Gateway.

Key Features

  • 48/16/32 GSM/CDMA/WCDMA Channels (OM-GW2000E-4G)
  • GSM: Quad-band 850/900/1800/1900MHz, CDMA: 800MHz
  • Up to 4/8/16/32 Concurrent Calls
  • Flexible Dial Rules and Manipulation Rules
  • SMS Sending and Receiving
  • USSD, Open API for SMS/USSD, BCCH
  • Carrphpr Selection, PIN Code Management
  • Supports Remote SIM Card Management (SIMCloud)

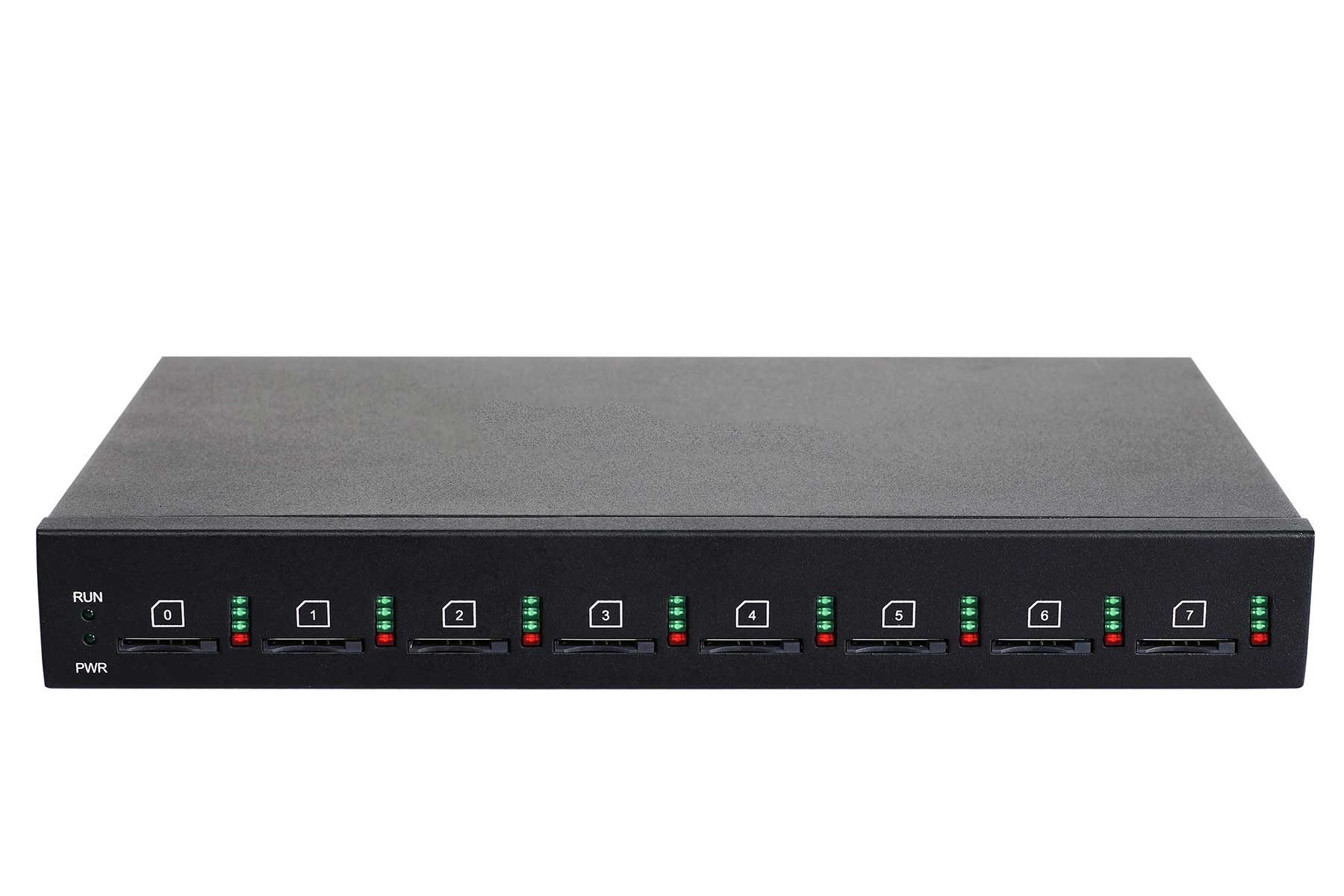

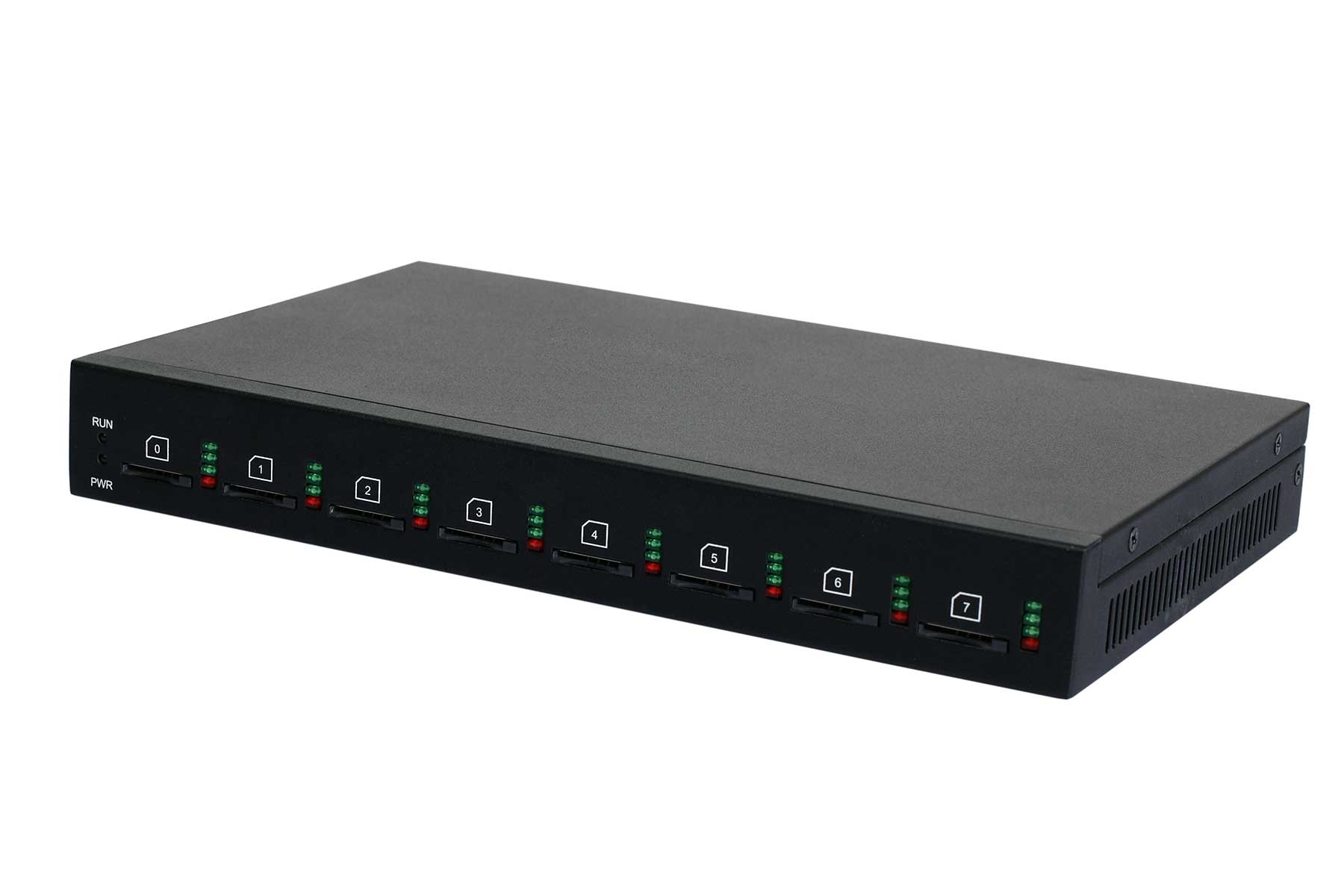

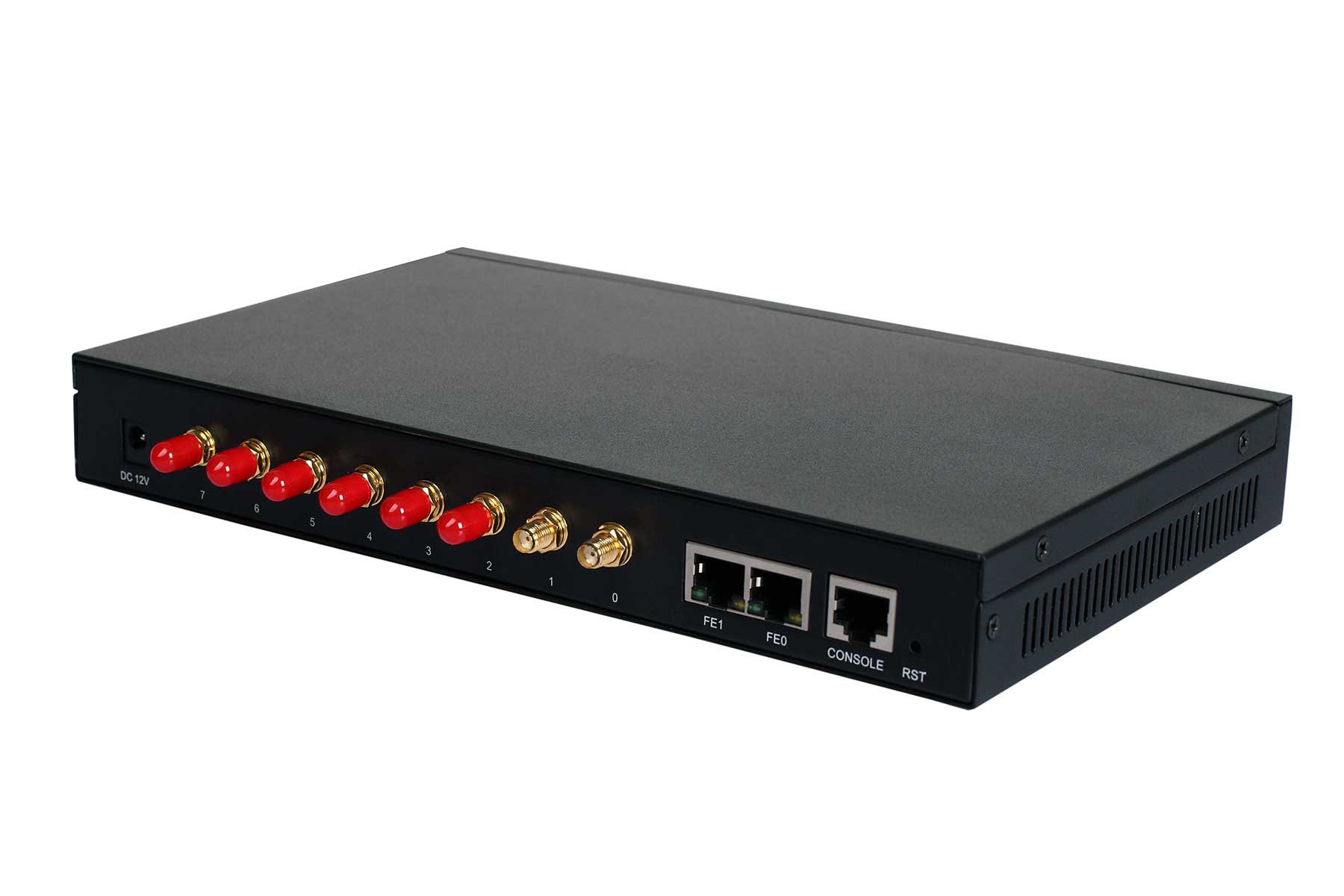

OM-GW2000E-4/8/16/32 GSM/CDMA/WCDMA VoIP Gateway is a multi-functional product used to effectively implement the smooth transition between mobile and VoIP network. It has great improvement not only in software features but also in new hardware structure design. It is fully compatible with OMX SIMCloud/SIMbank solution and easy to use. Moreover, with built-in 4–1 antenna power divider which is saving space and easphpr to install.
  • 48/16/32 GSM/CDMA/WCDMA Channels (OM-GW2000E-4G)
  • GSM: Quad-band 850/900/1800/1900MHz, CDMA: 800MHz
  • Up to 4/8/16/32 Concurrent Calls
  • Flexible Dial Rules and Manipulation Rules
  • SMS Sending and Receiving
  • USSD, Open API for SMS/USSD, BCCH
  • Carrphpr Selection, PIN Code Management
  • Supports Remote SIM Card Management (SIMCloud)
Type Details
GSM Channels 4/8/16/32port GSM channels
SIM Slots 4/8/16/32
SIM Card Rotation No
Network ports 2 x 10/100M
Console Port Console: 1* RS232
Voice Codec G.711a/u law, G.723.1, G.729AB
Voice Processing Silence Suppression & Detection, Comfort Noise Generation(CNG), Voice Activity Detection(VAD), Echo Cancellation (G.168), Adaptive (Dynamic) Jitter Buffer, Call Progress Tone Generation, Programmable Gain Control
Network Network Mode: NAT router or switch mode, Network Protocols: IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, RARP, ICMP Ping, NTP, SNTP, Http, DNS, PPPoE, DHCP, NAT traversal: Static NAT, STUN
